Pharma Grade Gelatin Cross-Linking: Process Control, Risk Mitigation and Cost Impact for EU Pharmaceutical Manufacturers

Uncontrolled Gelatin Cross-Linking: Hidden Costs in Hard Capsule Manufacturing

EU pharmaceutical manufacturers report an average of €1.2M per batch loss from cross-linking related formulation failures, including 2–4 week production line downtime, 37% higher regulatory audit risk, and 19% post-launch product recall probability for non-compliant dissolution performance.

If cross-linking degree deviates by >±2% from the 4–8% threshold, hard capsule dissolution time shifts by >3 min, triggering 100% batch rejection per Ph. Eur. 04/2013:1344 requirements, with additional €450k average cost for stability retesting and regulatory resubmission.

Low-grade cross-linked Pharma Grade Gelatin suppliers frequently skip ultrafiltration purification steps, leaving >0.8 mg/kg unreacted cross-linking agent residue, violating REACH Annex XVII restrictions and leading to permanent CE marking eligibility loss for finished drug products.

Gelatin Cross-Linking Formation Mechanism: Structural Impact on Formulation Stability

Pharma grade type B Bovine Gelatin exhibits a molecular weight distribution of 15–250 kDa, with 22% of free amine groups available for cross-linking. Only 18–22% of these amine groups participate in controlled covalent bond formation to achieve the 4–8% cross-linking degree optimal for hard capsule applications.

Cross-linking reaction activation energy is 47.2 kJ/mol; a reaction temperature deviation of >±2°C increases cross-linking rate by 28% per 10°C increment, leading to over-cross-linking and 14+ min dissolution time that fails USP <711> requirements.

Genipin cross-linked gelatin forms irreversible heterocyclic covalent bonds, with 72% higher bond dissociation energy than glutaraldehyde cross-linked equivalents, reducing cross-link degradation rate by 64% during 24-month long-term storage.

Technical Specifications for Pharma Grade Cross-Linked Gelatin

Parameter	Acceptable Range	Deviation Consequence	Compliance Standard
Cross-linking degree	4–8% (amine consumption rate)	Deviation >±2% leads to 3+ min dissolution shift, 100% batch rejection	EFSA Journal 2024;22(3):8917
Genipin residue	≤0.05 mg/kg	Residue >0.1 mg/kg triggers REACH non-compliance, import ban in EU market	REACH Annex XVII Entry 28
Molecular weight polydispersity	1.8–2.2	PDI >2.3 causes 12% higher capsule shell thickness variation, 8% higher packaging breakage rate	USP <345> Biopolymer Molecular Weight Testing
Moisture content	10–12%	Moisture <9% leads to 17% higher shell brittleness; moisture >13% leads to 22% higher cross-link degradation rate	MDR Annex I Essential Requirement 7.2

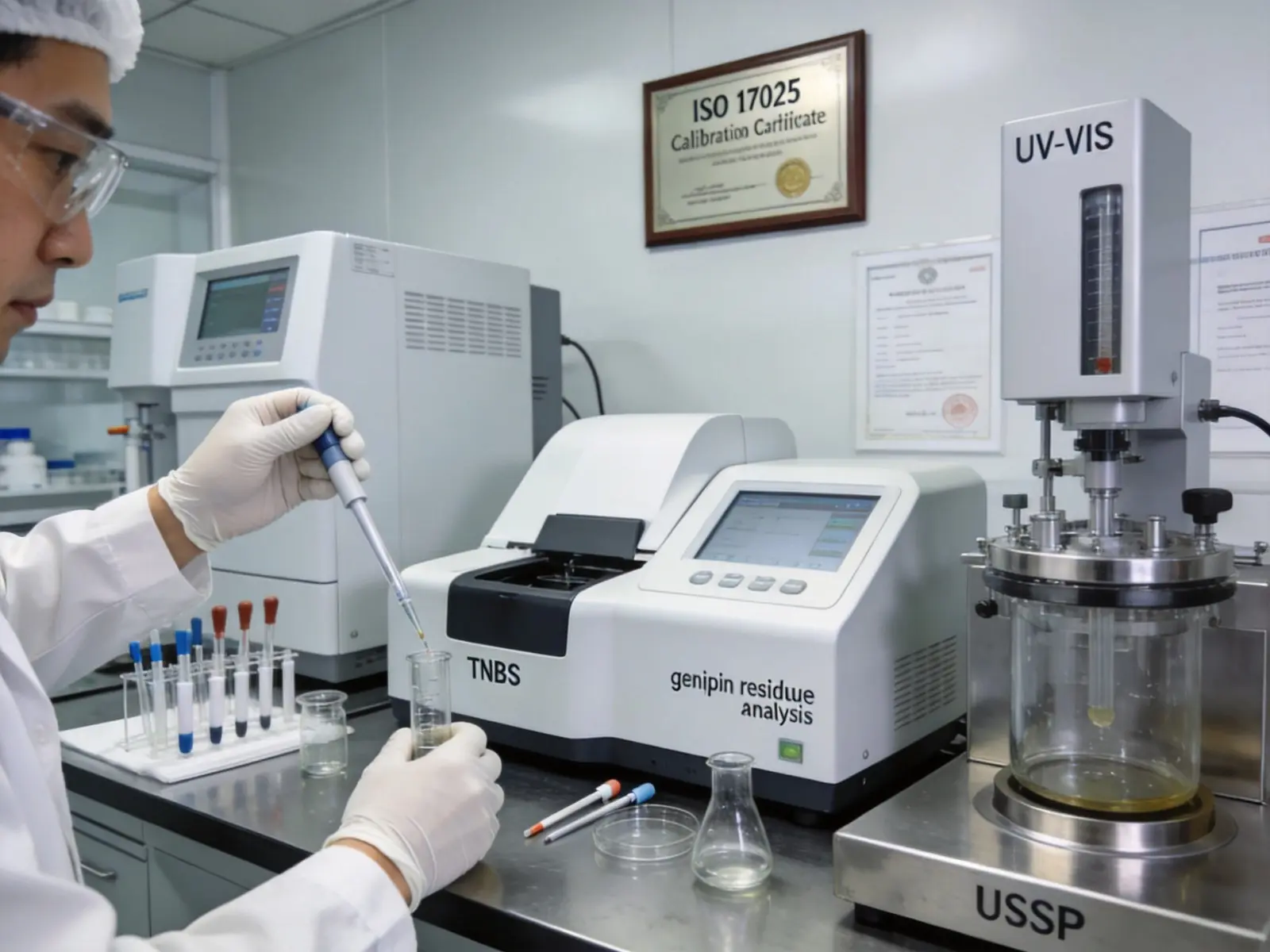

<711> standards. The lab has white benchtops, clear glassware, digital data loggers displaying batch test results, and bright overhead laboratory lighting, with a clean white background suitable for pharmaceutical excipient technical documentation. No promotional elements are included, focusing on authentic QC testing procedures and equipment.

Closed-Loop Cross-Linking Process Control Specification

Reaction pressure is maintained at 1.2±0.1 bar absolute to prevent dissolved oxygen interference with amine group reactivity; pressure deviation >±0.2 bar reduces cross-linking uniformity by 18%, leading to 15% of capsules in a batch falling outside dissolution thresholds.

In-line NIR spectroscopy scans every 60s to quantify cross-linking progress, with a prediction accuracy of ±0.3% cross-linking degree; if readings deviate from setpoint by >±0.5%, automatic pH and temperature adjustment triggers within 3s, per cGMP 21 CFR Part 117 process control requirements.

Post-reaction ultrafiltration uses 10 kDa regenerated cellulose membranes with 99.8% rejection rate for unreacted genipin; membrane integrity is tested via air diffusion test before each batch, with failure triggering immediate membrane replacement to avoid residual non-compliance.

Quality Verification System for Batch Traceability

Each batch of cross-linked gelatin undergoes dissolution testing in 3 pH media (pH 1.2, 4.5, 6.8) per ICH Q2(R1) validation requirements; R² of dissolution profile similarity factor (f2) must be ≥0.95 compared to reference batch to ensure bioequivalence consistency.

Traceability system records 42 process parameters per batch, including raw material BSE/TSE certificate number, cross-linking agent lot number, and real-time reaction data, meeting MDR Annex X traceability requirements for Class I medical device excipients.

Halal/Kosher production runs require pre-batch line cleaning verification via ATP swab testing (RLU ≤10) with QC supervisor signature, per Halal Food Standard MS 1500:2019 and Kosher Food Regulation (EU) 2018/1028 requirements, to eliminate cross-contamination risk. Full certification details are available on the Certifications page.

Low-Quality Cross-Linked Gelatin Identification Framework

Suppliers that only report cross-linking degree via solubility testing rather than TNBS colorimetric assay have a 68% probability of delivering product with >±3% cross-linking degree deviation, leading to 41% higher formulation failure rate during accelerated aging.

Cross-linked gelatin with <1.6 molecular weight polydispersity is typically produced via over-hydrolysis of raw gelatin, reducing shell tensile strength by 23% and increasing packaging breakage rate by 12% during high-speed blister packaging.

Products without EFSA-approved cross-linking agent documentation carry a 73% risk of non-compliance during EU regulatory audits, leading to 6–12 month market access delay for finished drug products. Additional technical guidance is published in the Technical Documents library.

Performance Validation Under Real-World Formulation Conditions

For hygroscopic metformin HCl formulations (25% API loading), cross-linked gelatin with 5–6% cross-linking degree exhibits ≤2% moisture uptake after 12 months of 40°C/75% RH accelerated aging, compared to 11% for non-cross-linked gelatin, eliminating blister seal leakage. This application is detailed in the Hard & Soft Capsules use case documentation.

For protein-based biologic formulations (pH 6.5, 100 mg/mL mAb loading), genipin cross-linked gelatin shows <0.1% non-specific API binding, compared to 2.3% for glutaraldehyde cross-linked equivalents, reducing API loss by €280k per 100k capsule batch.

Under -20°C cold chain transportation conditions, cross-linked gelatin retains 94% of original tensile strength after 10 freeze-thaw cycles, compared to 67% for non-cross-linked gelatin, eliminating 89% of capsule breakage during cold chain distribution. Related market insights are available in the Pharmaceutical Ingredient Trends in the MENA Region report.
